Description

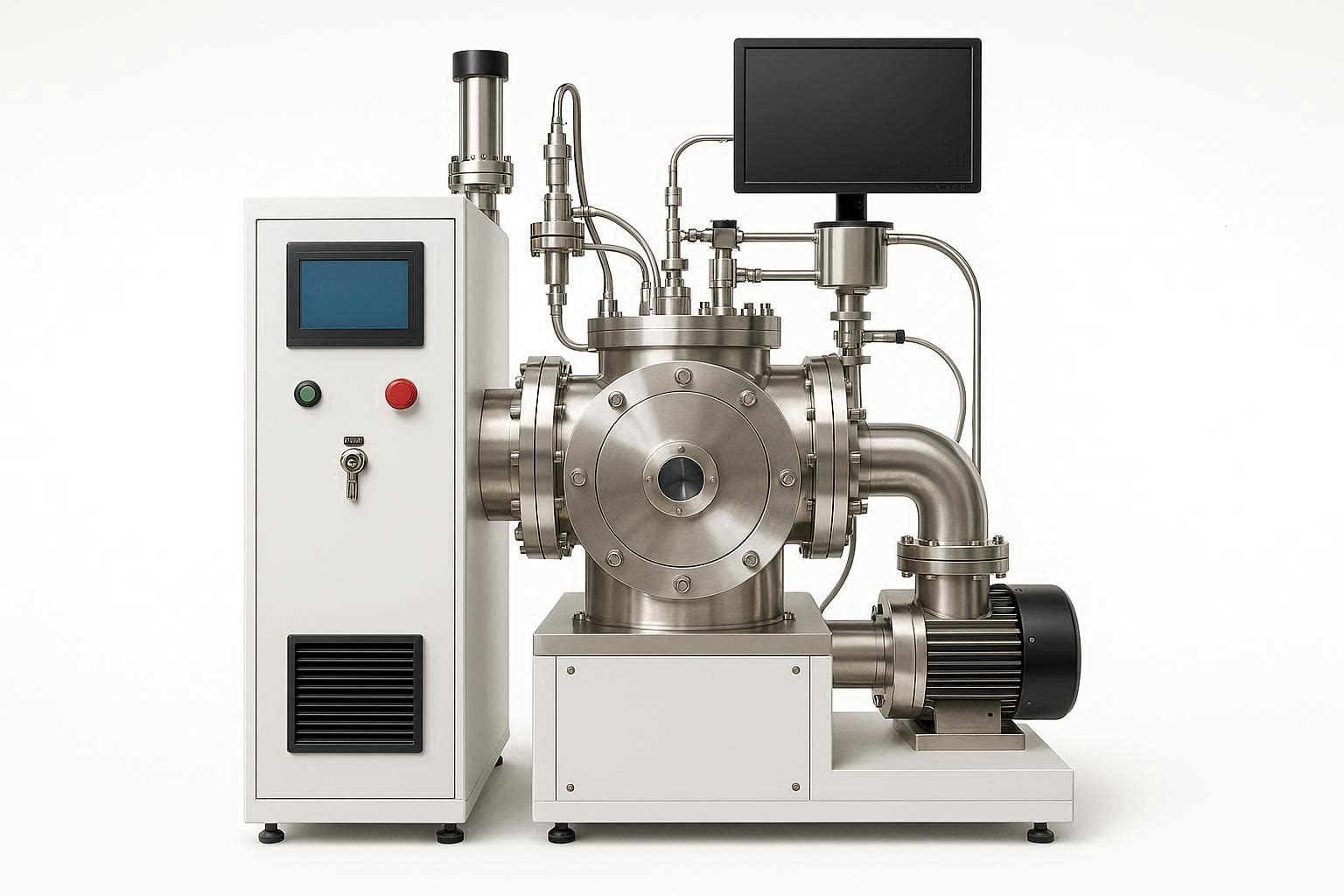

An Atomic Layer Deposition (ALD) System is a specialized equipment that employs sequential, self-limiting chemical reactions to deposit thin films layer-by-layer at the atomic level. This precise process allows for the fabrication of coatings with exceptional uniformity, conformality, and thickness control, typically ranging from a few nanometers to hundreds of nanometers.
How it works:
- The system introduces a precursor gas that reacts with the substrate surface.
- Excess precursor is purged out.
- A second reactant is introduced, reacting with the first layer to form the desired film.
- The cycle repeats, building up the film one atomic layer at a time.
Atomic Layer Deposition (ALD) is a thin-film deposition technique based on the sequential use of gas-phase chemical processes. Unlike Thermal Evaporation (where material is melted and deposited by line-of-sight), Atomic Layer Deposition relies on self-limiting surface reactions. In an Atomic Layer Deposition cycle, two or more chemical precursors are pulsed into a vacuum chamber one after another. Each precursor reacts with the surface until all active sites are consumed, then the excess is purged. This allows for the growth of films one atomic layer at a time, ensuring unmatched thickness control and perfect "conformality" (even coating on complex 3D structures or deep trenches).
- Reaction Chamber: A vacuum-sealed vessel where the substrate is placed. It is typically heated to provide the thermal energy needed for the chemical reaction.
- Precursor Delivery System: A series of high-speed, specialized valves and heated lines that deliver gaseous or vaporized chemicals into the chamber in precise millisecond pulses.
- Vacuum System: A combination of a turbomolecular and backing pump used to remove unreacted precursors and by-products between pulses.
- Inert Gas Purge (N₂ or Ar): A carrier gas system used to "sweep" the chamber clean between precursor pulses to prevent gas-phase reactions (which would cause poor film quality).
- Control System (PLC/PC): Advanced software that manages the timing of pulses and purges, often synchronized with a Quartz Crystal Microbalance (QCM) or Ellipsometer for real-time monitoring.
- Plasma Generator (Optional): Used in PE-ALD (Plasma-Enhanced ALD) systems to enable reactions at lower temperatures.
- Atomic-Scale Thickness Control: Precise deposition for nanotechnology and advanced electronics.
- Conformal Coatings: Uniform coverage on complex and high-aspect-ratio structures.
- Versatile Material Compatibility: Suitable for oxides, nitrides, metals, and more.
- High-Quality Films: Excellent purity and adhesion.
- Automated Operation: Programmable cycle sequences for consistent results.
- Low Material Waste: Efficient use of precursors.
- Semiconductor Devices: Gate dielectrics, passivation layers, and insulating films.
- Nanostructures: Coating nanoparticles, nanotubes, and nanowires.
- Optoelectronics: Fabrication of high-performance optical components.
- Energy Storage: Coatings for batteries and supercapacitors.
- Protective Coatings: Corrosion and wear-resistant layers.
- Research & Development: Material innovation and device prototyping.
- Unmatched Precision: Atomic-level control over film thickness.
- Excellent Conformality: Ideal for coating complex 3D structures.
- High-Quality Films: Purity and uniformity for sensitive applications.
- Scalability: Suitable for both small-scale research and large-scale production.
- Material Versatility: Wide range of compatible materials.
| Selection Criteria | Entry-Level / Benchtop | Advanced Research (R&D) | Mass Production (Industrial) |
|---|---|---|---|
| Typical User | Universities, Small Labs | Corporate R&D, Nanofab Facilities | Semiconductor Fabs, Solar Plants |
| System Architecture | Simple Thermal ALD (Hot wall) | Plasma-Enhanced (PE-ALD) / Multi-precursor | Batch or Spatial ALD (Continuous) |
| Throughput | 1 wafer per run; slow cycles | 1–5 wafers; medium cycles | 100+ wafers/hour or continuous roll-to-roll |
| Precursor Slots | 2 – 3 channels | 4 – 8 channels | Dedicated high-volume delivery |
| Conformality | High | Excellent (High Aspect Ratio) | High Speed / High Uniformity |
| Automation | Basic PC control | Full recipe automation & In-situ metrology | Fully robotic (EFEM / FOUP) loading |
| Primary Goal | Material discovery / Proof of concept | Device prototyping / Interface engineering | Cost-of-ownership / High-volume yield |
Elevate your thin film technology with our advanced Atomic Layer Deposition System. Contact us today to learn more about integrating ALD into your manufacturing or research processes!
