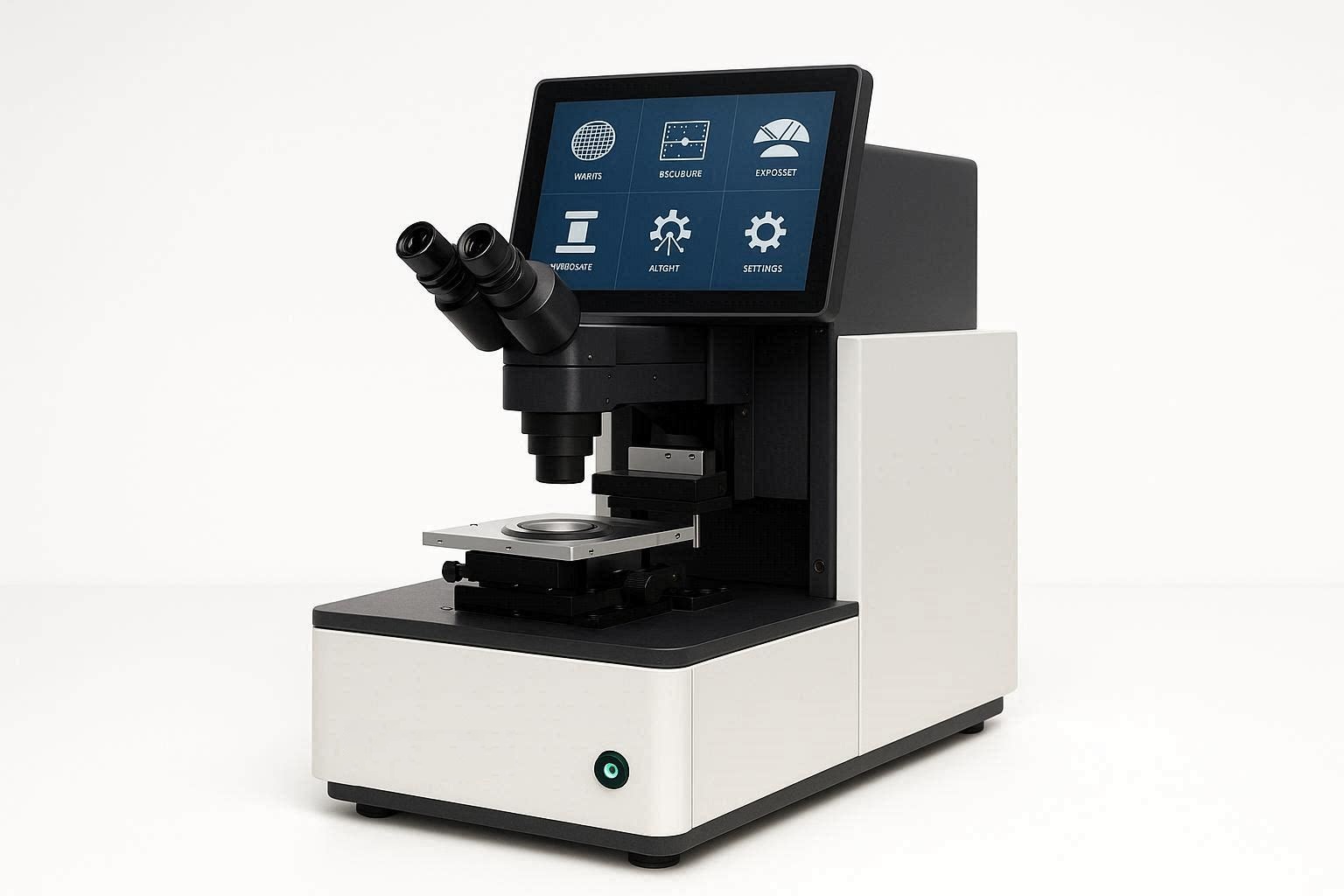

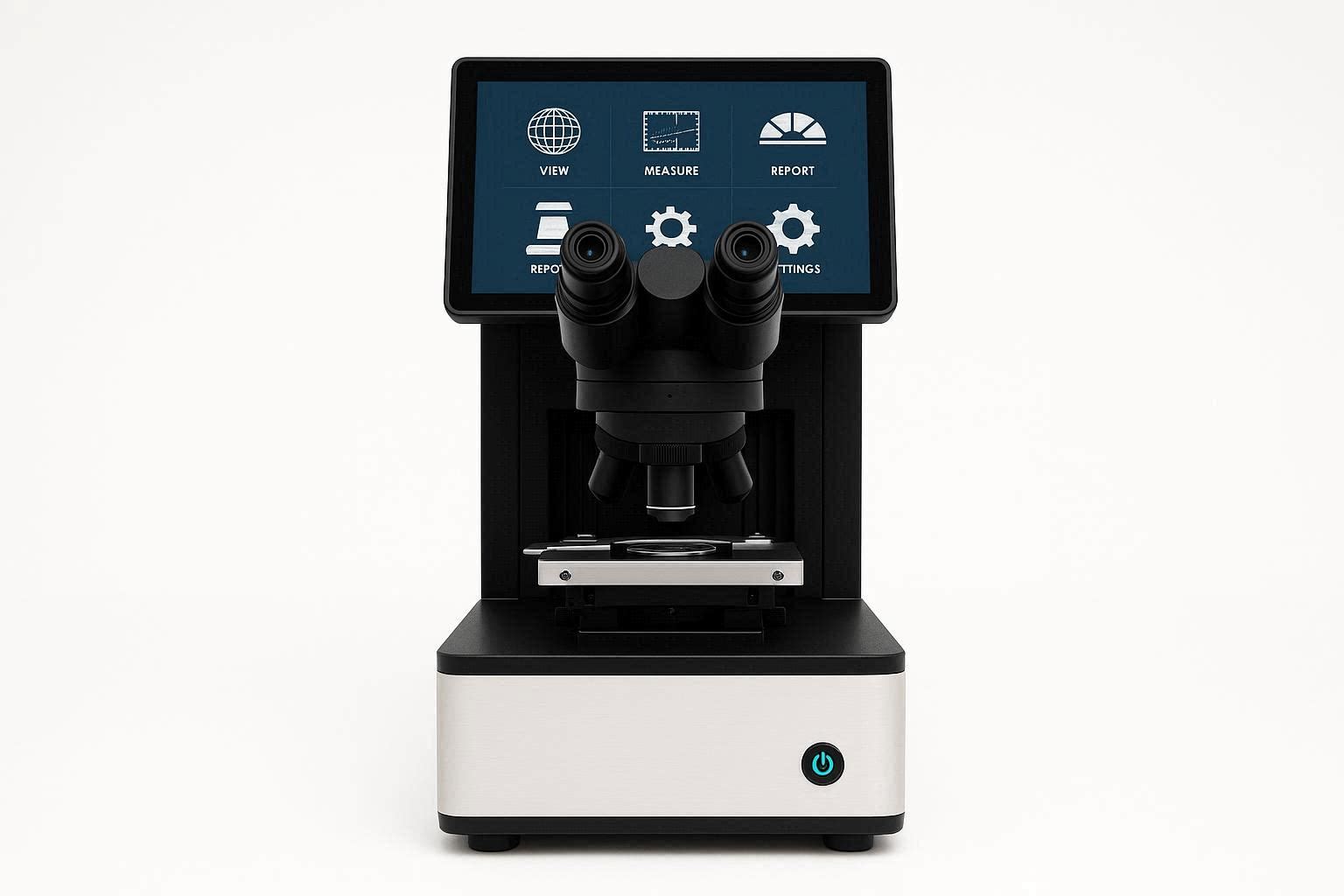

Mask Aligners
Description
Mask Aligner is a vital tool in microfabrication and semiconductor production, used to precisely align and expose patterns onto substrates. This essential equipment enables high-resolution photolithography processes, making it ideal for the fabrication of microchips, MEMS devices, sensors, and research prototypes.
Key Benefits of a Mask Aligner:
- High Accuracy and Precision: Ensures precise alignment for intricate pattern transfer.
- Cost-Effective Solution: Ideal for small-scale production, R&D, and prototyping.
- Versatile Applications: Suitable for a wide range of microfabrication tasks.
- User-Friendly Operation: Designed for ease of use in research labs and fabrication facilities.
Advantages of Using a Mask Aligner:
- Cost-effective alternative to more complex lithography systems
- Enables rapid prototyping and iterative design
- Provides reliable and precise patterning for microfabrication projects
Key Applications of Mask Aligners:
- Semiconductor device fabrication
- MEMS and sensor manufacturing
- Bio-MEMS and biomedical device development
- Microfluidics and nanotechnology research
Why Choose a Mask Aligner?
Mask aligners provide reliable, high-resolution patterning essential for developing advanced electronic and biomedical devices. They are an indispensable part of the microfabrication process, offering excellent alignment accuracy and process control.
Discover the Benefits of Modern Mask Aligner Equipment for Your Microfabrication Needs — the perfect choice for precise, efficient, and cost-effective pattern transfer.
*For more information, please contact us.
| Parameter | Manual Aligner | Semiautomatic Aligner | Automatic Aligner |
| Substrate Handling | Manual loading and unloading | Manual or automated loading options | Fully automated wafer and mask handling |
| Alignment Process | Operator-driven using micrometers and microscopes | Motorized stages with operator-assisted vision | Advanced pattern recognition and image matching |
| Throughput | Low suitable for R&D and prototyping | Moderate ideal for pilot production | High mass production (up to thousands of WPH) |
| Alignment Accuracy | ~1.0 – 5.0 µm | ~0.5 – 1.0 µm | Sub-micron (down to < 0.5µm) |
| Print Resolution | Down to ~0.5 – 1.0 µm | Down to ~0.5 µm | High precision (down to ~250 nm) |
| Typical Wafer Size | Pieces to 4"-6" (up to 8") | 4" to 8" (up to 12") | 6" to 12" (150 - 300 mm) |
| Operation Control | Mechanical/Manual | PLC with touch panel or PC | PC/PLC with recipe- based control |
| Best Use Case | Universities basic R&D small labs | Industrial research mid-volume production | High-volume manufacturing (Fabs) |
