Pick-and-Place Tools

Description

Pick-and-Place Tools are automated or semi-automated devices used to accurately position, transfer, and assemble small components in electronics manufacturing, assembly lines, and microfabrication processes. They play a vital role in increasing efficiency, precision, and consistency in production.

What Are Pick-and-Place Tools?

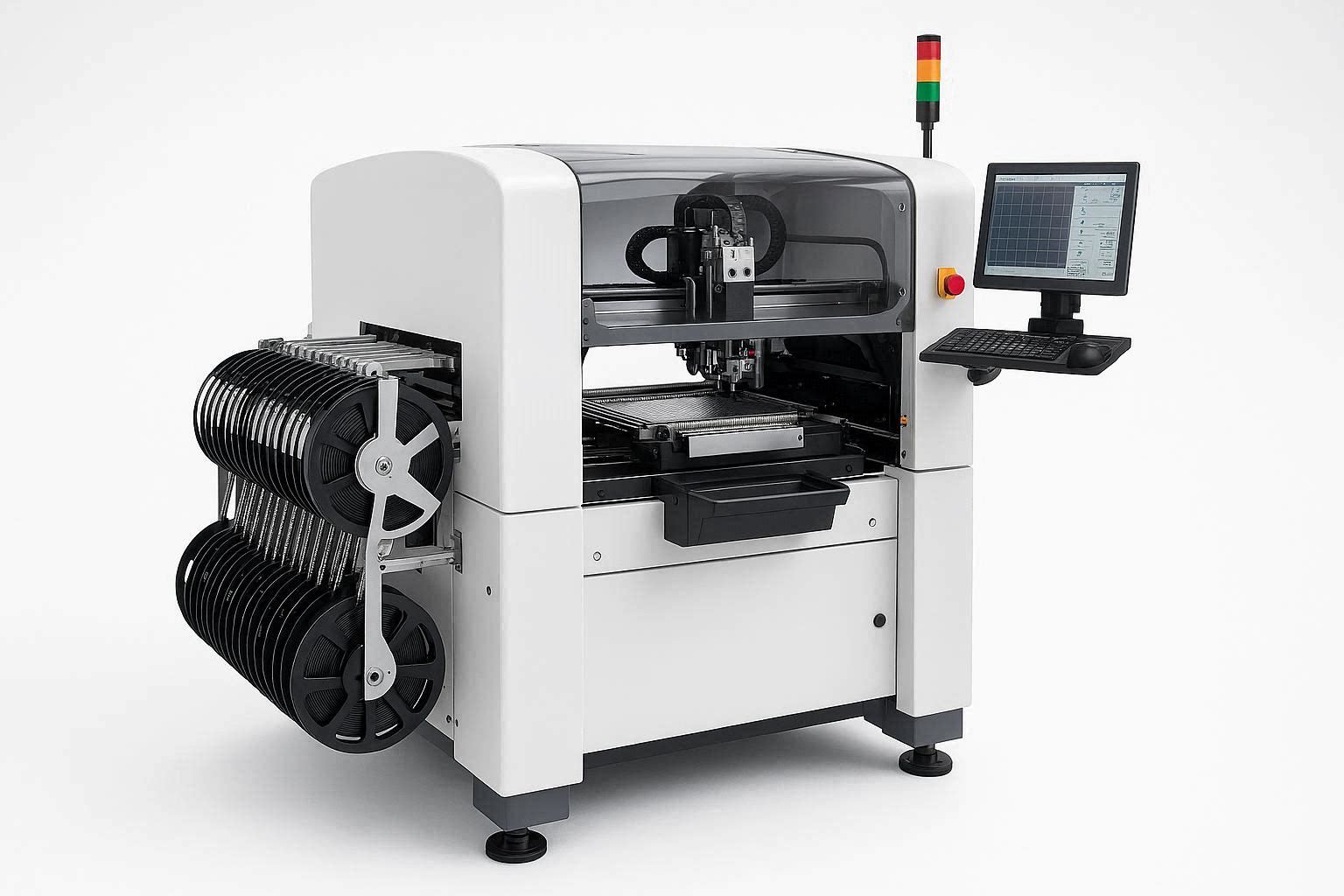

Pick-and-Place Tools are robotic or manual systems designed to pick up components, such as electronic chips, resistors, capacitors, or micro-components, and place them onto substrates, circuit boards, or wafers with high accuracy.

Types of Pick-and-Place Tools:

- Automated Pick-and-Place Machines: High-speed robotic systems used in PCB assembly, semiconductor packaging, and microelectronics.
- Manual or Semi-Automated Tools: Handheld devices or benchtop systems for small-scale or delicate tasks.
- Micro Pick-and-Place Robots: For handling tiny components in MEMS, optoelectronics, and precision assembly.

Key Features of Pick-and-Place Tools:

- Precise positional accuracy (often micron-level)
- Compatibility with various component sizes and types
- Fast placement speeds for high-volume production
- Programmable for different assembly patterns
- Integrated vision systems for component recognition and alignment

Applications of Pick-and-Place Tools:

- Electronics Manufacturing: PCB assembly, component placement, and soldering
- Microelectronics & Semiconductors: Die handling, chip placement, wafer processing
- Medical Devices: Assembly of miniature medical components
- Automotive & Aerospace: Precision assembly of complex parts

Benefits of Using Pick-and-Place Tools

- Enhanced Precision: Accurate placement reduces errors and rework
- Increased Productivity: Faster assembly times for large volumes
- Consistency: Uniform component positioning for reliable performance
- Versatility: Capable of handling a wide range of components and substrates
- Cost Savings: Reduces labor costs and minimizes material waste

Key Value Propositions

- Ultra-Low Force Handling: Programmable "Soft-Touch" pick-up sequences (down to 0.1N) prevent micro-cracking and stress in ultra-thin wafers (<50µm).
- Advanced Vision Alignment: Dual-camera "Look-up/Look-down" technology compensates for die-to-substrate thermal expansion and theta misalignment in real-time.
- Active Bond Force Control: Real-time closed-loop feedback ensures consistent bond line thickness (BLT) for epoxy or eutectic die attach processes.
- SEMI-Compliant Material Flow: Full integration with automated wafer probers, cassette loaders, and strip-handling systems for seamless ISO Class 5 fab operation.
- High-Dynamics Motion: Linear motor-driven X-Y stages provide high-acceleration movement with zero backlash, maximizing Units Per Hour (UPH) in 24/7 production environments.

Technical Deep-Dive

- Our P&P platforms are engineered for high-frequency motion and extreme thermal stability.
- Pick-up Technology: Utilizes multi-nozzle rotary or linear heads with vacuum-sensing feedback to ensure 100% "Good Die" transfer and "Bad Die" rejection based on electronic wafer maps.
- Ejector Systems: Precision needle-ejector modules with programmable heights and speeds ensure clean die-release from dicing tape without backside damage.
- Material Compatibility: Optimized for a wide range of substrates including Leadframes, BGA Substrates, PCBs, and specialized Gel-Paks.
- Technical Drawings: [Placeholder: Request CAD Previews for Inline Assembly Line Integration].

Buyer’s Guide / Decision Logic

Selecting a Pick-and-Place tool requires matching the tool's kinematics to your package complexity:

- Placement Accuracy vs. UPH: For advanced Flip-Chip (FC) bonding, prioritize sub-5µm accuracy; for standard die sorting into waffle packs, prioritize maximum UPH (30k+).
- Die Aspect Ratio: Large, thin dies require specialized "Spider" vacuum pick-up tools to prevent die-warpage during the high-speed transfer phase.
- Process Integration: Determine if you require integrated flux dipping, epoxy dispensing, or eutectic heating modules within the same P&P footprint.

Technical FAQ

Q: How does the system handle wafer map data?
A: The tool natively supports standard SEMI G85 (Wafer Map) and XML formats, allowing it to automatically skip "Inked" or failed dies identified during wafer-level testing.

Q: What is the minimum die size the tool can handle?
A: With our ultra-fine pitch nozzles, the system can reliably pick and place dies as small as 0.2mm x 0.2mm.

Q: Does the tool support Flip-Chip (FC) processing?
A: Yes. The "Nano" series includes a high-speed flipping unit that rotates the die 180° for direct-bump-to-substrate bonding with integrated fluxing options.

Q: How is the tool calibrated for thermal drift?
A: The system features an automated "Self-Calibration" routine using glass artifacts to compensate for thermal expansion in the chassis and motion stages every shift.

Q: Is the system SECS/GEM ready?
A: Absolutely. It provides full remote recipe management, OEE monitoring, and individual die-traceability logs for automotive and medical-grade manufacturing.
