Precision Vacuum Pens & Semiconductor Tweezers

Description

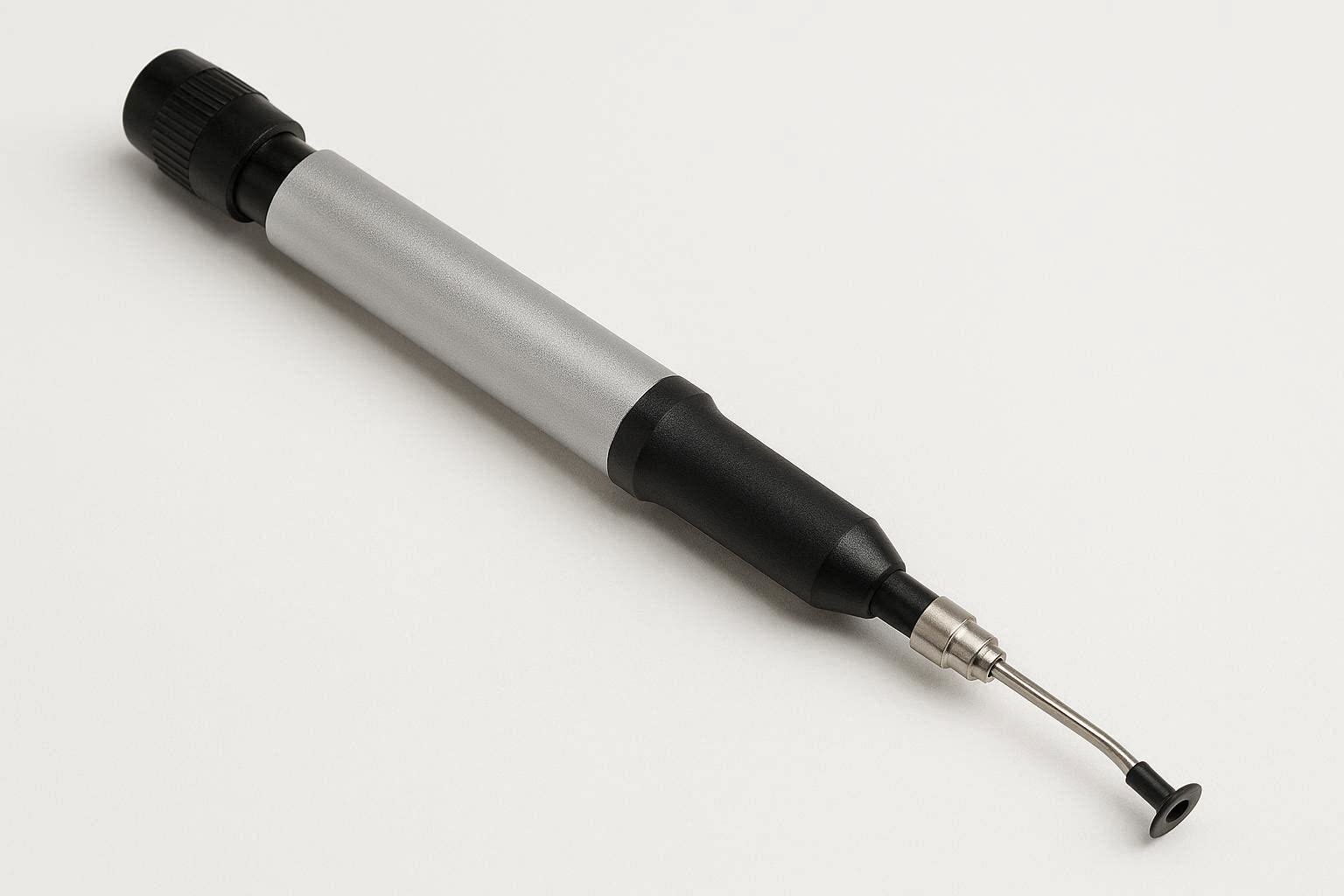

Precision Vacuum Pen - Semiconductor Equipmemnt

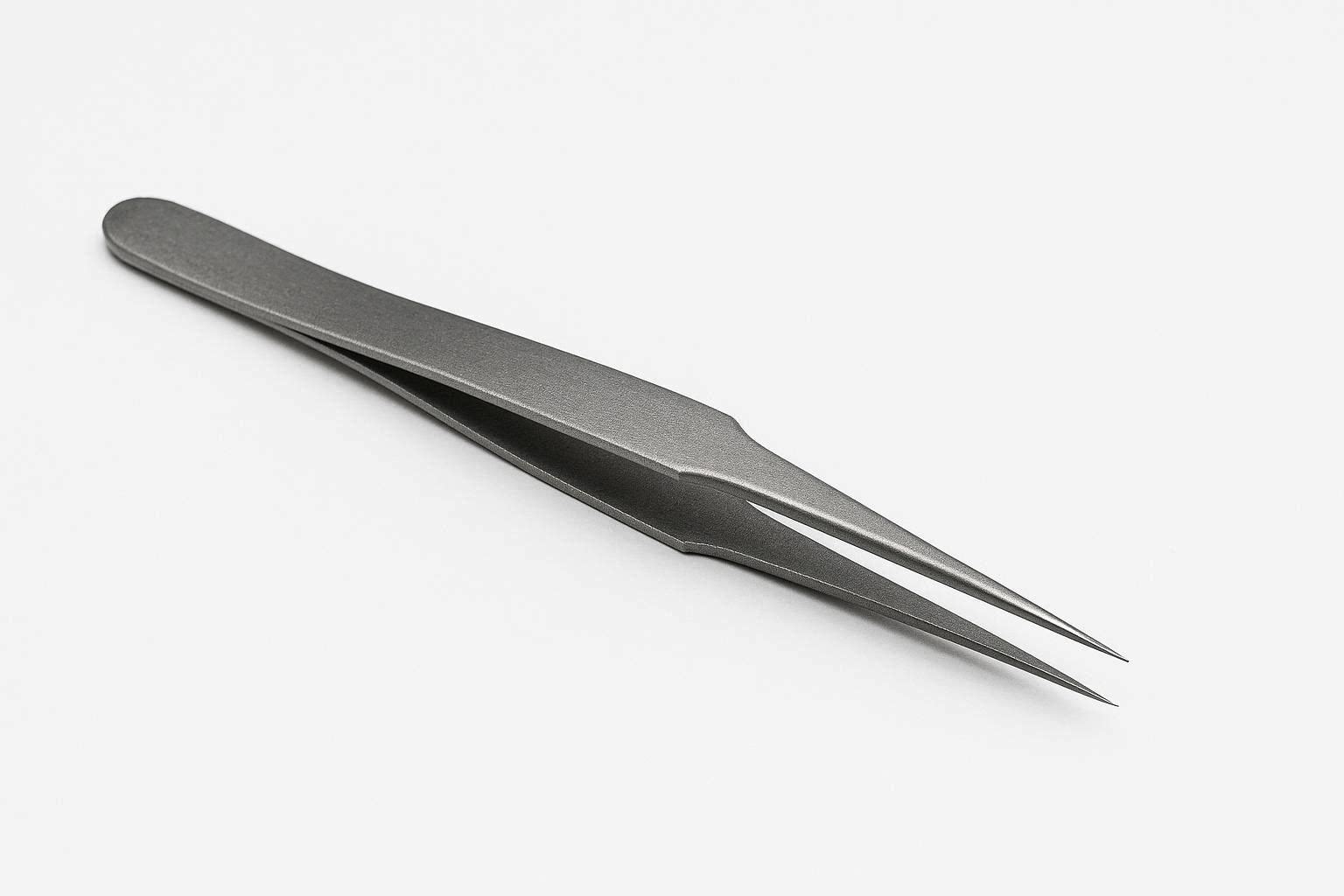

Semiconductor Tweezer - Semiconductor Equipment

Precision Vacuum Pens and Semiconductor Tweezers are specialized tools designed for handling small, delicate components in electronics manufacturing, microfabrication, and laboratory environments. They ensure safe, accurate, and contamination-free manipulation of micro-components.

What Are Precision Vacuum Pens?

Precision Vacuum Pens are handheld tools that use integrated vacuum suction to pick up and place tiny components such as chips, die, or microelectronic parts. They provide a gentle, controlled grip, minimizing damage and contamination.

Features of Precision Vacuum Pens:

- Adjustable vacuum levels for delicate handling
- Ergonomic design for precision control
- Compatibility with various component sizes
- Often equipped with replaceable tips

Applications of Precision Vacuum Pens:

- Microelectronics assembly
- Semiconductor die handling
- MEMS device fabrication
- Laboratory research and testing

What Are Semiconductor Tweezers?

Semiconductor Tweezers are fine-tipped, antistatic tools made from materials like stainless steel or tungsten, designed for grasping, positioning, and manipulating tiny semiconductor components, chips, or wires.

Features of Semiconductor Tweezers:

- Precise, anti-magnetic tips
- Electrostatic discharge (ESD) protection
- Fine tips for delicate handling
- Durable and corrosion-resistant materials

Applications of Semiconductor Tweezers:

- Component placement on circuit boards
- Die sorting and testing
- Microfabrication processes
- Repair and rework of microelectronic devices

Benefits of Using Precision Vacuum Pens and Semiconductor Tweezers:

- Enhanced Precision: Minimize component damage during handling
- Contamination Control: Reduce dust and static issues
- Efficiency: Speed up assembly and testing processes
- Safety: Reduce risk of electrostatic discharge (ESD)
- Versatility: Suitable for a wide range of micro-components

Key Value Propositions

- Absolute ESD Protection: All tools are manufactured from dissipative or conductive materials with surface resistivities meeting SEMI and ANSI/ESD S20.20 standards.
- Non-Marring Contact: Tips are crafted from high-performance polymers (PEEK, Teflon, Vespel) to prevent scratching, contamination, or metallic transfer to sensitive active areas.
- Precision Vacuum Control: Vacuum pens feature adjustable suction levels and "instant-release" triggers to prevent stiction and ensure a safe drop-off.
- Thermal Stability: Specialized tweezers and vacuum tips are rated for high-temperature environments (up to 280°C), ideal for picking components directly from hot plates.
- Ergonomic Optimization: Lightweight, balanced designs reduce operator fatigue and minimize the "tremor effect" during high-magnification manual placement.

Technical Deep-Dive

Manual handling tools must balance structural rigidity with surface softness.

- Vacuum Technology: Our wands utilize either internal rechargeable pumps for mobility or venturi-effect adapters for connection to factory compressed air/vacuum lines. Integrated HEPA-grade intake filters prevent the ingestion of cleanroom particulates into the tool.
- Tweezer Geometry: Available in high-precision patterns (Pattern 00, 2A, 5, 7) with custom-milled "wafer-pocket" or "edge-grip" tips that distribute pressure evenly, preventing fracture in brittle substrates like GaAs or InP.
- Chemical Resistance: Tools are compatible with common fab solvents (IPA, Acetone) and are autoclavable for bio-semi or medical-grade assembly applications.
- Technical Drawings: [Placeholder: Request CAD Previews for Custom Tip Geometries and Edge-Grip Profiles].

Buyer’s Guide / Decision Logic

Choosing the right handling tool is a trade-off between speed and surface sensitivity:

- Vacuum vs. Mechanical: Use Vacuum Pens for top-side handling of flat dies to avoid edge-chipping. Use Specialized Tweezers for vertical placement or when the top surface contains sensitive micro-lenses or air-bridges.
- Tip Material Selection: Use PEEK for high-wear applications; use Conductive Silicone for the softest possible contact on delicate organic thin-films.
- Vacuum Source: For lab-based R&D, a Battery-Powered Pen offers maximum freedom of movement; for 24/7 production, a Line-Fed Vacuum Wand provides consistent, uninterrupted suction power.

Technical FAQ

Q: How do I prevent "Stiction" when releasing a die with a vacuum pen?
A: Our "Pro" series includes a programmable positive-pressure pulse at the moment of release to overcome Van der Waals forces, ensuring the die stays exactly where you place it.

Q: Are the tweezers safe for use under a microscope?
A: Yes. We offer anti-glare, matte-finish coatings (non-reflective) specifically designed to reduce operator eye strain under high-intensity microscope illumination.

Q: Can these tools be used in an ISO Class 1 cleanroom?
A: Absolutely. All tools are cleaned and double-bagged in a Class 10 environment and utilize low-outgassing materials that meet SEMI E108 standards.

Q: What is the maximum lift capacity of the vacuum wands?
A: Depending on the cup size, our industrial wands can safely lift components ranging from 10mg up to 500g (including full 200mm wafers).

Q: Do you offer custom tip shapes?
A: Yes. We provide custom CAD-designed tips for non-standard components, including specialized grips for circular optics or high-aspect-ratio sensors.

Precision Vacuum Pens & Semiconductor Tweezers | ESD-Safe Micro-Handling

Industrial-grade vacuum pens and specialized tweezers for delicate wafer and die handling. Features ESD-safe materials, non-marring tips, and cleanroom compatibility.

In the final stages of assembly and failure analysis, the human-machine interface is often the most significant risk to component integrity. Our Precision Vacuum Pens and Specialized Tweezers are engineered to eliminate the risks of mechanical stress and electrostatic discharge (ESD) during the handling of ultra-fragile micro-components. By utilizing non-marring, high-temperature materials and ergonomic designs, these tools provide process engineers and technicians with the tactile control necessary to move dies, MEMS, and optical components without compromising surface quality or yield.


Interactive Selection Table: Tool Configurations

Model No. Tool Type Tip Material Handling Range Primary Application
VP-Stat Pro Vacuum Pen (Battery) ESD-Safe Silicone 100 µm to 10 mm Die Sorting / SMD
VP-Line Vac Vacuum Wand (AC) PEEK / Teflon Up to 200mm Wafer Fab-Line Wafer Transfer
TW-Titan Ultra Specialized Tweezers Titanium / Carbon Micro-components Failure Analysis / R&D
TW-Soft Grip Tweezers Conductive PEEK Fragile Edge-Grip Compound Semi / MEMS

Would you like specific product options, technical specifications, or guidance on selecting the right tools for your application?
